1. 가정용에서 산업용까지 폭넓은 사용
3. 아크릴재질 투명바디 사용으로 오염도를 육안식별가능
3. 캡 OPEN&CLOSE시 안정되고 자연스럽게 작동
|
|
| |
|
| |
| AYT 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AYT-05W,B |
5" |
1/4" NPT |
WHITE&BLUE |
AYT-05C |
5" |
1/4" NPT |
CLEAR |
AYT-10B |
10" |
1/4" ,3/8" NPT |
BLUE |
AYT-10C |
10" |
1/4" ,3/8" NPT |
CLEAR |
|
|
|
|
| AEG 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
EG-10W |
10" |
1/4" ,3/8" NPT |
WHITE |
AEG-10C |
5" |
1/4" ,3/8" NPT |
CLEAR |
|
AEG-10C |
AEG-10W |
|
|
|
| |
| 더블 O-RING 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AYT-10W-02 |
10" |
1/2",3/4" NPT |
WHITE |
AYT-10C-02 |
10" |
1/2",3/4" NPT |
CLEAR |
AEG-10W-02 |
10" |
1/4" ,3/8" NPT |
WHITE |
AEG-10C-02 |
10" |
1/4" ,3/8" NPT |
CLEAR |
|
AEG-10C-02 |
AGE-10W-02 |
|
|
|
| AHH3 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AHS3-10W |
10" |
1/2",3/4",1" BSP |
WHITE |
AHS3-10C |
10" |
1/2",3/4",1" BSP |
CLEAR |
|
AHS3-10 |
AHS3-10C |
|
|
|
| |
| AQF-10"/20" 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AQF-10B |
10" |
3/8",1/2",3/4" NPT |
BLUE |
AQF-10C |
10" |
3/8",1/2",3/4" NPT |
CLEAR |
AQF-2040B |
20" |
3/8",1/2",3/4" NPT |
BLUE |
AQF-2040C |
20" |
|
CLEAR |
|
AQF-2040 |
AQF-2040C |
AQF-10C |
AQF-10 |
|
|
|

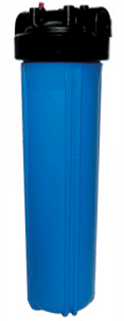

| AQF-BIG 블루 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AQF-1050B |
10"BIG |
1",11/4"
11/2" NPT or BSP |
BLUE |
10"BIG |
BLUE |
AQF-2050B |
20"BIG |
1",11/4"
11/2" NPT or BSP |
BLUE |
20"BIG |
BLUE |
|
AQF-2050 |
AQF-1050 |
|
|
|
| |
| AHS3-10" 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
MHKP11135 |
8" |
1/8" |
GRAY |
|
MHKP11135 |
|
|
|
| S.STEEL-10"/20" 하우징 |
ITEM NO |
FILTER SIZE |
IN/OUTLET |
COLOR |
AF-SS-10 |
10" |
3/4",1" BSP |
SUS |
AF-SS-20 |
20" |
3/4",1" BSP |
SUS |
|
AF-22-10 |
AF-SS-20 |
|
|
|
| |
| S.STEEL 멀티 하우징 |
CF-05,CF-07 |
CF-10,CF-14 |
CF-15,CF-21 |
CF-20,CF-28 |
 |
|
*Flange in/outlet available
*Housing Material : SS304.or SS316 on request
*Working Temperature : 1~50°c
*Working pressure : 30~150psi(2~10kg/cm²) |
| |
MODEL |
A |
B |
C |
D |
CF-05/07 |
120 |
280 |
470 |
230 |
CF-10/14 |
120 |
280 |
470 |
230 |
CF-15/21 |
120 |
280 |
470 |
230 |
CF-20/28 |
120 |
280 |
470 |
230 |
|
|
|
PART NO |
DESCRIPTION |
PIPE SIZE(NPT) |
DRAIN(NPT) |
CARTRIDGES LOAD |
CF-05 |
230mm(D)X590mm(H) |
1 1/2" |
3/4" |
10"X5 |
CF-10 |
230mm(D)X890mm(H) |
1 1/2" |
3/4" |
20"X5 |
CF-15 |
230mm(D)X1110mm(H) |
1 1/2" |
3/4" |
30"X5 |
CF-20 |
230mm(D)X1380mm(H) |
1 1/2" |
3/4" |
40"X5 |
CF-07 |
230mm(D)X590mm(H) |
1 1/2" |
3/4" |
10"X7 |
CF-14 |
230mm(D)X890mm(H) |
1 1/2" |
3/4" |
20"X7 |
CF-21 |
230mm(D)X1110mm(H) |
2" |
3/4" |
30"X7 |
CF-28 |
230mm(D)X1380mm(H) |
2" |
3/4" |
40"X7 |
|
|
| |
|
|
 |
|
|
|
