1. 세련된 디자인
3. 다양한 종류(소유량에서 대유량까지)
5. 구조가 간단하여 취급이 용이
|
2. 정밀한 측정
4. 순간 유량을 간단 명료하게 확인 가능
6. 탁월한 성능
|
|
| |
|
| |
|
 |
| |

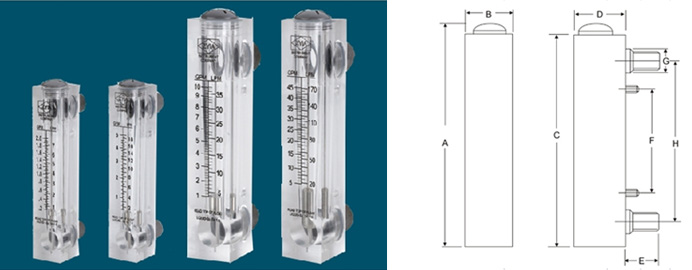

| 외형 치수 |
Model |
Size(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
FMZ-15 |
175 |
32 |
168 |
35 |
25 |
76 |
25 |
127 |
FMZ-25 |
234 |
45 |
226 |
46 |
33 |
100 |
37 |
160 |
|
| |
| 제품 규격 |
Model |
Measure Range |
GPM(Liquid) |
LPM(Liquid) |
MN3/h(Gas) |
FMZ-15-1 |
0.1-1 |
0.5-4 |
1-10 |
FMZ-15-2 |
0.2-2 |
1-07 |
1.6-16 |
FMZ-15-3 |
0.3-3 |
1-11 |
2.5-25 |
FMZ-15-5 |
0.5-5 |
2-18 |
4-40 |
FMZ-25-10 |
1-10 |
5-35 |
10-100 |
FMZ-25-14 |
2-14 |
10-50 |
20-100 |
FMZ-25-20 |
2-20 |
10-70 |
16-160 |
FMZ-25-35 |
5-35 |
10-130 |
25-250 |
FMZ-25-40 |
5-40 |
10-150 |
30-300 |
FMZ-25-45 |
5-45 |
10-170 |
35-350 |
|
|
| |
|
 |
| |

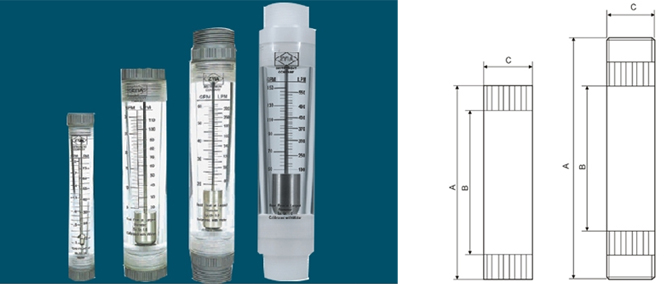

| 외형 치수 |
Model |
Size(mm) |
A |
B |
C |
FMG-15 |
210 |
180 |
32 |
FMG-20 |
278 |
236 |
45 |
FMG-25 |
265 |
235 |
51 |
FMG-40 |
306 |
235 |
51 |
FMG-50 |
380 |
270 |
75 |
FMG-75F |
392 |
298 |
110x110 |
|
| |
| 제품 규격 |
Model |
Measure Range |
Screw Thread |
Accuracy |
GPM(Liquid) |
LPM(Liquid) |
MN3/h(Gas) |
ZG 1/2" |
1/2" BSPT |
FMG-15 |
0.1-1 |
0.5-4 |
1-10 |
G 1/2" |
1/2" BSP |
±4% |
FMG-15 |
0.2-2 |
1-07 |
1.6-16 |
G 1/2" |
1/2" BSP |
FMG-15 |
0.5-5 |
1.8-1.8 |
4-40 |
G 1/2" |
1/2" BSP |
FMG-20 |
1-10 |
4-36 |
6-60 |
G 3/4" |
3/4" BSP |
FMG-25 |
2-20 |
10-70 |
16-160 |
G 3/4" |
1" BSP |
FMG-25 |
5-30 |
20-100 |
25-250 |
G 1" |
1" BSP |
FMG-25 |
5-40 |
20-150 |
35-350 |
G 1" |
1" BSP |
FMG-40 |
5-30 |
20-110 |
25-250 |
G 11/2" |
11/2" BSP |
FMG-40 |
5-40 |
20-150 |
35-350 |
G 11/2" |
11/2" BSP |
FMG-40 |
20-60 |
80-220 |
80-400 |
G 11/2" |
11/2" BSP |
FMG-50 |
20-80 |
80-300 |
100-500 |
G 2" |
2" BSP |
FMG-50 |
20-100 |
80-360 |
120-600 |
G 2" |
2" BSP |
FMG-50 |
40-120 |
150-450 |
300-850 |
G 2" |
2" BSP |
FMG-50 |
50-150 |
190-560 |
400-1200 |
G 2" |
2" BSP |
FMG-50 |
60-200 |
220-750 |
500-1400 |
G 2" |
2" BSP |
FMG-75F |
120-300 |
450-1100 |
|
G 3 " |
3" BSP |
|
|
| |
|
 |
| |

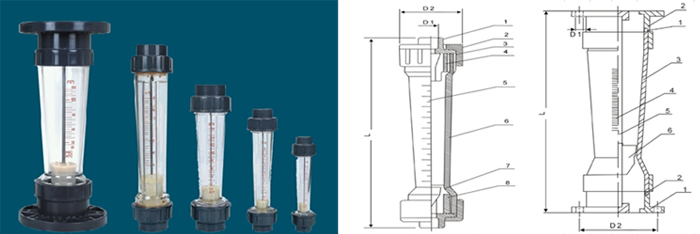

| 외형 치수 |
Model |
Size(mm) |
Suit Pipe Dg(mm) |
Long Tube-Type |
Short Tube-Type |
L |
D1 |
D2 |
L |
D1 |
D2 |
FMS-15 |
280 |
20 |
45 |
202 |
20 |
45 |
15 or 20 |
FMS-25 |
380 |
32 |
68 |
226 |
32 |
60 |
25 or 32 |
FMS-32 |
|
|
|
288 |
40 |
74 |
32 or 40 |
FMS-50 |
430 |
63 |
98 |
341 |
63 |
98 |
50 or 63 |
FMS-65 |
|
|
|
430 |
75 |
122 |
65 or 75 |
FMS-100 |
547 |
17 |
175 |
550 |
Flange |
100 |
FMS-125 |
547 |
17 |
205 |
550 |
Flange |
125 |
|
| |
| 제품 규격 |
| Model |
Diameter(Dg)mm |
Measure Range |
Accuracy |
Media State |
| Long Tube-Type |
Short Tube-Type |
Temperature |
Pressure |
| FMS-15 |
15 |
10-100 l/h |
5-50 l/h |
±4% |
0-60 |
≤0.6 |
| 16-160 l/h |
10-100 l/h |
| 25-250 l/h |
16-160 l/h |
| 40-400 l/h |
25-250 l/h |
| 60-600 l/h |
40-400 l/h |
| |
50-500 l/h |
| 60-600 l/h |
| 100-1000 l/h |
| FMS-25 |
25 |
100-1000 l/h |
100-1000 l/h |
| 160-1600 l/h |
160-1600 l/h |
| 250-2500 l/h |
250-2500 l/h |
| FMS-32 |
32 |
|
0.4-4m³/h |
| 0.6-6m³/h |
| FMS-50 |
50 |
0.4-4m³/h |
|
| 0.6-6m³/h |
| 1-10m³/h |
1-10m³/h |
| 4-16m³/h |
1.6-16m³/h |
| FMS-65 |
65 |
|
2.5-16m³/h |
| 5-25m³/h |
| 8-40m³/h |
| 12-60m³/h |
| FMS-100 |
100 |
|
14-90m³/h |
| 18-120m³/h |
| FMS-125 |
125 |
|
25-150m³/h |
| 25-180m³/h |
|
|
| |
| |
|
